Yamaha WR250F

LAMS

The WR250F is closer than ever to the industry leading YZ250F and the cross-country racing YZ250FX. All three models are based on the same platform but with significant differences that suit the type of riding for which they have been designed.

The goal for the WR250F was to provide superior handling and increased steering precision while retaining high speed stability. And to create a slimmer and lower machine that inspires more confidence with a lighter feeling. Thorough testing has revealed that the new machine has surpassed this goal by allowing super easy direction changes with high levels of manoeuvrability. Power is stronger at all levels and delivered in a linear fashion with excellent traction characteristics.

In short, the WR250F is now even better at what it has always been best at – carving through singletrack like a hot knife through butter.

*Model sold with full ADR equipment fitted as standard.

Features

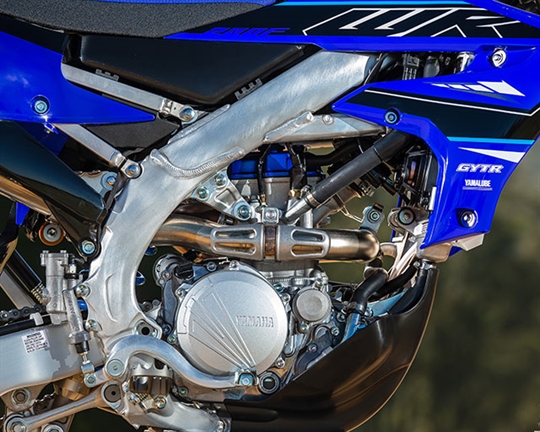

High performance engine

High performance engine

The new WR250F engine features a new high compression forged aluminium piston, revised valve angle and exhaust cam timing with revised balance factor -  all based closely on the winning fuel-injected YZ250F design. Its airbox is situated in front of the rider and the fuel tank located at the centre of the bike – a unique configuration that contributes to the bike's mass centralisation, which plays a pivotal role in achieving light and agile handling.

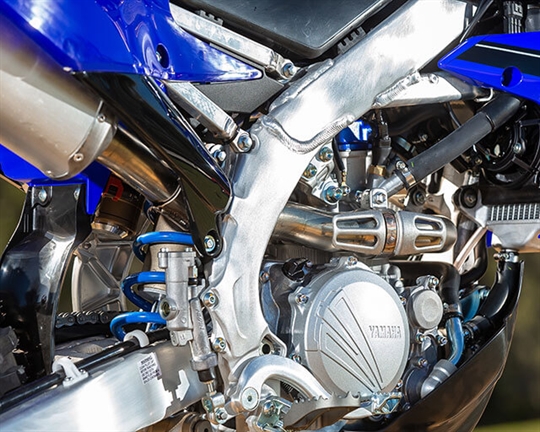

Aluminium bilateral beam frame

Aluminium bilateral beam frame

WR250F now runs the same bilateral beam frame as the sharp handling current model YZ250F. To achieve a rigidity balance with the amount of flex needed for enduro riding, the engine mount brackets have been altered. The upper-side mounts are the same as on the YZ250F, while two-plate type mounts are used for the front-side mounts. The result contributes to the machine’s excellent feeling of contact with the ground and offers feedback about the riding surface while providing a light feel to the handling.

Industry leading front and rear suspension

Industry leading front and rear suspension

WR250F runs the same KYB air-oil-separate closed chamber upside-down front fork as the YZ250F but with model-specific enduro settings to provide stable damping force. This suspension is acknowledged to be the best available on a production dirt bike and responds particularly well during the transition between the compression and rebound strokes. And because the suspension holds up well in the stroke, ground clearance is improved over the outgoing model.

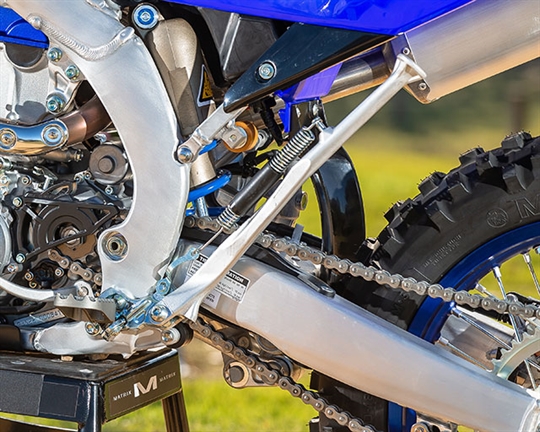

Forged aluminium sidestand

Forged aluminium sidestand

A lighter and less obtrusive forged aluminium sidestand is positioned to ensure plenty of ground clearance when riding through ruts and the like. The new stand sits higher and the amount it juts out from the chassis is reduced which helps prevent snagging. The weight of the stand has also been reduced by about 100g.

Lightweight speed sensor

Lightweight speed sensor

A new lightweight front wheel speed sensor connects to a highly precise speed display and with no more speedo drive, makes front wheel changes easier. The system features a pulse wheel and sensor system known for excellent reliability and provides the detailed speed information essential for enduro riding. Display includes low fuel warning light.

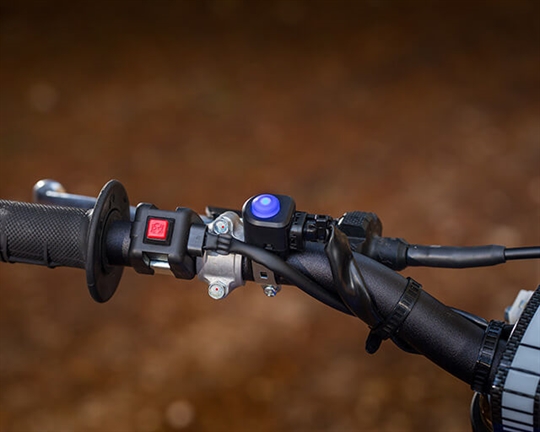

Engine map switch

Engine map switch

A bar-mounted dual engine map switch has been adopted and positioned next to the left lever to enable changes in the engine power delivery characteristics mid-race. This switch allows the rider to select one of two engine maps on the fly at the press of a button to cater for changes in the riding environment. This means that when the going gets loose, steep or muddy – high traction can be accessed at the press of a button.

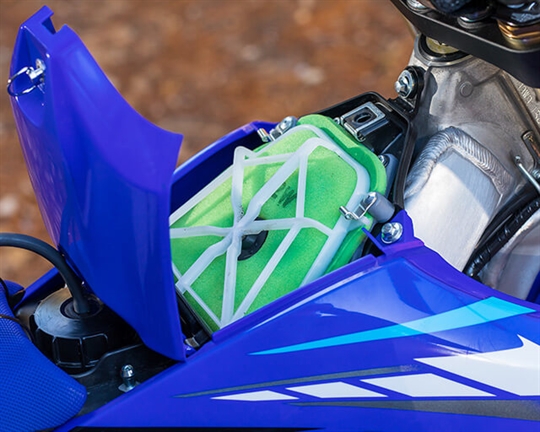

Free flow air filter

Free flow air filter

The filter element features reduced airflow resistance and intake noise combined with increased reliability. The new filter and the length of the intake funnel contribute to an excellent feeling of traction and linear characteristics during acceleration and deceleration. Plus, dust filtering capability is increased by adding rubber seals to the centre positioning pin.

New smartphone tuning

New smartphone tuning

On board WiFi means that you can tune the new WR250F to different track conditions using your smartphone. A downloadable Power Tuner app allows you to make fuelling and ignition timing changes instantly and upload/share them for the ultimate in track-side tuning. The free Yamaha Power Tuner app also allows owners to record ride/race log information and monitor a range of data such as maintenance and system diagnosis, engine run time and more.

Technical Specifications

Yamaha WR250F Specs

Engine

Engine Type: Liquid-cooled, 4-stroke, DOHC , 4-valve

Displacement (cc): 250.0

Bore x Stroke (mm): 77.0 x 53.6

Compression Ratio: 13.8 : 1

Lubrication System: Wet sump

Fuel Management: Fuel Injection

Ignition: TCI

Starter System: Electric

Fuel Tank Capacity (L): 7.9

Final Transmission: Chain

Transmission: Constant mesh 5-speed

Chassis

Frame Type: Bilateral beam

Suspension Front: Telescopic forks, 310mm travel

Suspension Rear: Swingarm (link suspension), 317mm travel

Brakes Front: Hydraulic single disc, 270mm

Brakes Rear: Hydraulic single disc, 245mm

Tyres Front: 90/90-21 54M Tube type

Tyres Rear: 130/90-18 M/C 69M M+S Tube Type

Dimensions

Length (mm): 2175

Width (mm): 825

Height (mm): 1270

Seat Height (mm): 955

Wheelbase (mm): 1480

Ground Clearance (mm): 320

Wet Weight (kg): 115

Colours

Colours and trims displayed here are a guide only and may vary from actual colours due to the display process.

  1. Team Yamaha Blue
