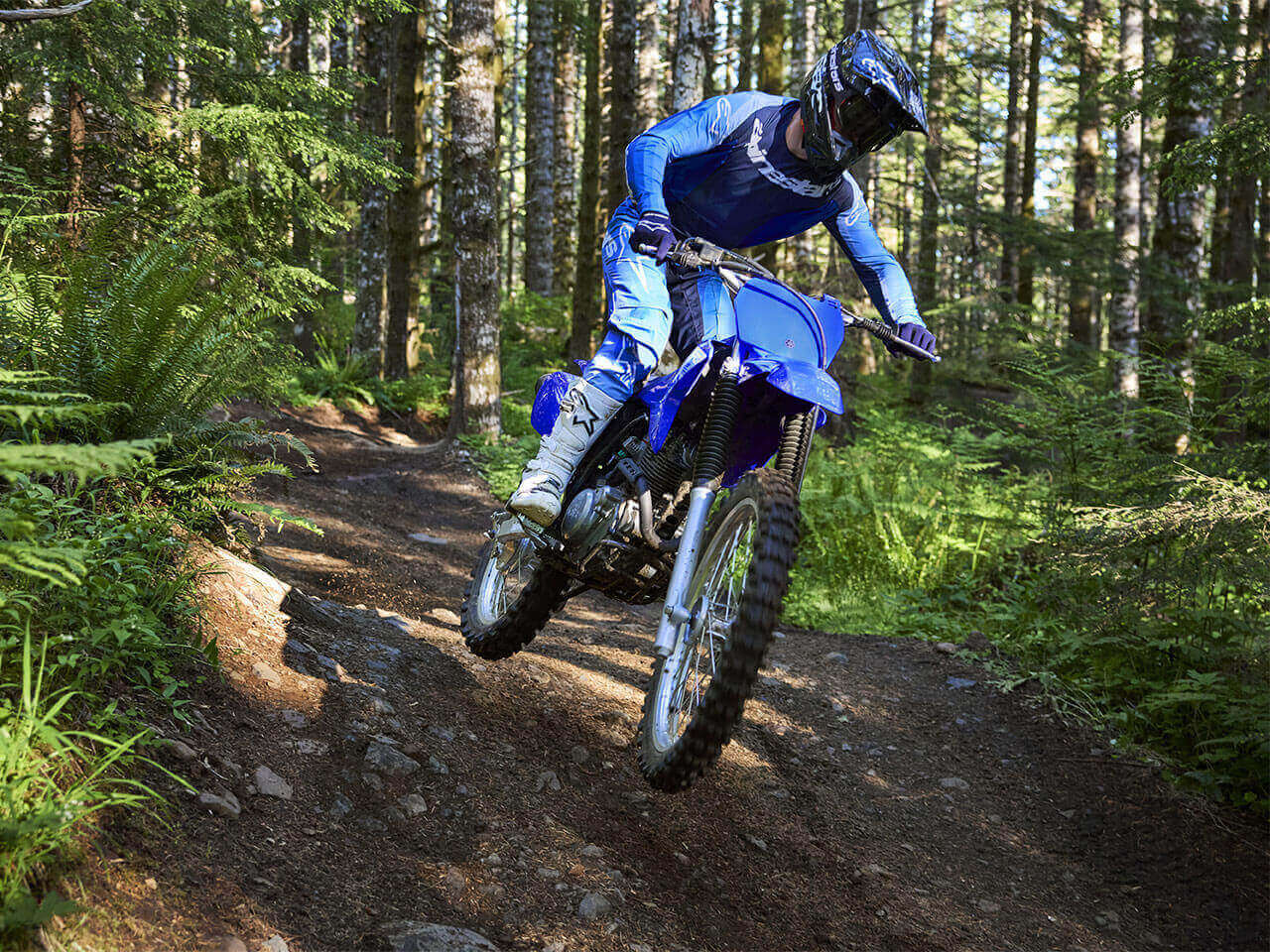

Yamaha TT-R230

Air-cooled 223cc four-stroke

Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.

Plush suspension

36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.

6-speed gearbox

Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.

Superb stopping power

Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

Low seat height

A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.

Engine

Engine Type: Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder

Displacement (cc): 223.0

Bore x Stroke (mm): 70.0 x 58.0

Compression Ratio: 9.5 : 1

Lubrication System: Wet sump

Fuel Management: Y26P x 1

Ignition: CDI

Starter System: Electric

Fuel Tank Capacity (L): 8.0

Final Transmission: Chain

Transmission: Constant mesh 6-speed

Chassis

Frame Type: Diamond

Suspension Front: Telescopic forks, 240mm travel

Suspension Rear: Swingarm (link suspension), 220mm travel

Brakes Front: Hydraulic single discs, 220mm

Brakes Rear: Drum

Tyres Front: 80/100-21 51R Tube type

Tyres Rear: 100/100-18 59R Tube type

Dimensions

Length (mm): 2065

Width (mm): 800

Height (mm): 1180

Seat Height (mm): 870

Wheelbase (mm): 1385

Ground Clearance (mm): 295

Wet Weight (kg): 114
