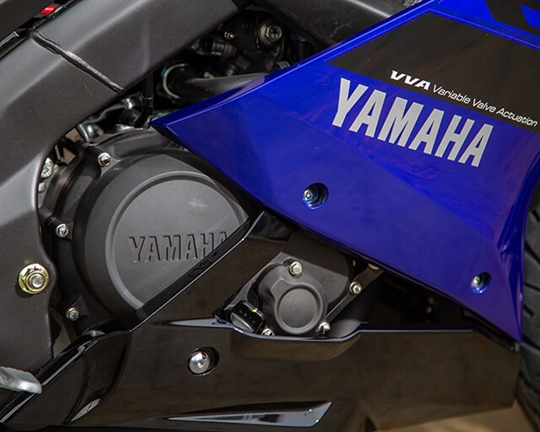

Single-cylinder 155cc engine

The engine also features a lightweight forged aluminium piston with DiASil coated cylinder wall, larger diameter intake and exhaust ports, upgraded fuelling, a 5.5 litre air cleaner that's 60 percent larger than the outgoing engine, an assist and slipper clutch and a new muffler with a three-stage expansion chamber. In addition to the extra power produced, the new engine is also more economical on fuel, delivering in excess of 450km from a single tank, that's an incredible 45km per litre.

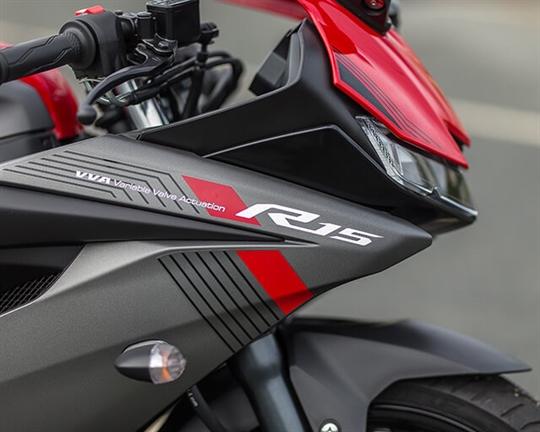

Variable Valve Actuation

The cylinder head features two inlet cams: one for low to mid-range rpm and another for high rpm. The switch between the two rocker arms is carried out by a solenoid motor activated at a predetermined rev-range. The result is high revving performance without sacrificing low-to-mid-range torque and rideability. The technology delivers an 18.3 percent increase in power from just a three percent (5cc) increase in engine capacity.

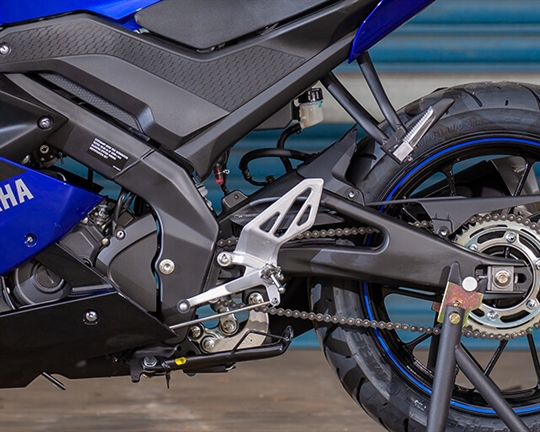

Deltabox Frame

A 20mm increase in width between the left and right pivot points on the updated Deltabox frame, now 221mm, has allowed the fitment of a new delta-shaped swingarm. Reinforcement of the swingarm is by internal ribbing, to accommodate a wider 140/70-17 rear tyre on the wider rear wheel.

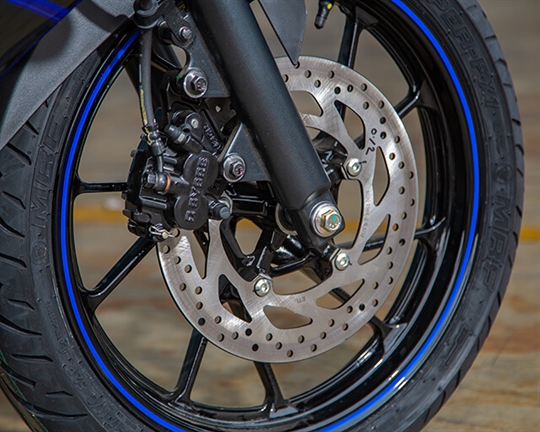

Larger brakes

Braking performance has been increased with a new 15mm larger 282mm front brake disc and twin-piston caliper. At the rear is a 220mm disc with a single-piston caliper.

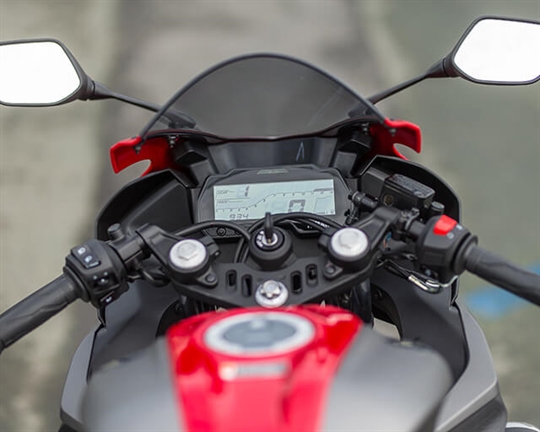

Race-inspired styling

Slim twin-eye LED headlights have an aggressive glaring eyes look similar to the YZF-R1, while the cockpit features a YZR-M1-inspired triple clamp and multi-function LCD instrument panel.

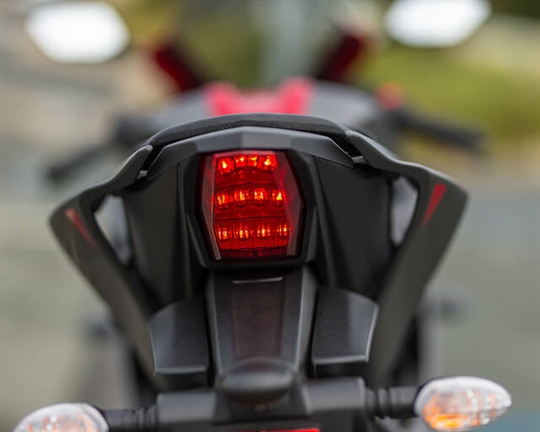

Aerodynamic bodywork

The racing-inspired bodywork is now more aerodynamic, featuring a central air intake and layered fairings. An indentation in the top of the fuel tank optimises the rider's tuck position. Fuel capacity has been reduced by 1-litre to 11-litres for a more streamlined design.

Engine

Engine Type: Liquid cooled, 4-stroke, SOHC, 4-valve

Displacement (cc): 155.0

Bore x Stroke (mm): 58.0 x 58.7

Compression Ratio: 11.6 : 1

Lubrication System: Wet sump

Fuel Management: Fuel Injection

Ignition: TCI

Starter System: Electric

Fuel Tank Capacity (L): 11.0

Final Transmission: Chain

Transmission: Constant mesh 6-speed

Chassis

Frame Type: Deltabox

Suspension Front: Telescopic forks, 130mm travel

Suspension Rear: Swingarm (link suspension), 97mm travel

Brakes Front: Hydraulic single disc, 282mm - ABS

Brakes Rear: Hydraulic single disc, 220mm - ABS

Tyres Front: 100/80-17M/C 52P Tubeless

Tyres Rear: 140/70-17M/C 66H Tubeless

Dimensions

Length (mm): 1990

Width (mm): 725

Height (mm): 1135

Seat Height (mm): 815

Wheelbase (mm): 1325

Ground Clearance (mm): 170

Wet Weight (kg): 138
